• Tests multiple battery types :Tests wet/GEL/lead-acid batteries, making it versatile and convenient for car owners.
• Accurate readings :Provides accurate readings of battery capacity, ensuring that you know exactly how much power your battery has left.
• Easy to use :Simple and straightforward design makes it easy to use, even for those who are not experienced with car batteries.
• CE certified :This product is CE certified, ensuring that it meets European safety standards and is safe to use.
Features:
BM580 Battery Tester adopts the state-of-art conductance testing technology in the word to easily, quickly and accurately measure the actual cold
cranking amps capability of the vehicle starting battery,healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintence personnel to find the problem quickly and accurately.
If your car battery suddenly runs out, and you don’t know the cause of this problem. BM580 is a full-style battery analyzer, which can be used by both beginners and professionals.
The battery tester can provide fast and accurate test results within a minute. Check the battery charging status, the battery health status for you.
Works on 6 V/12 V battery, CCA100-2000, 2 Ah-220 Ah
notifies the users to replace battery in advance when the battery getting aged.

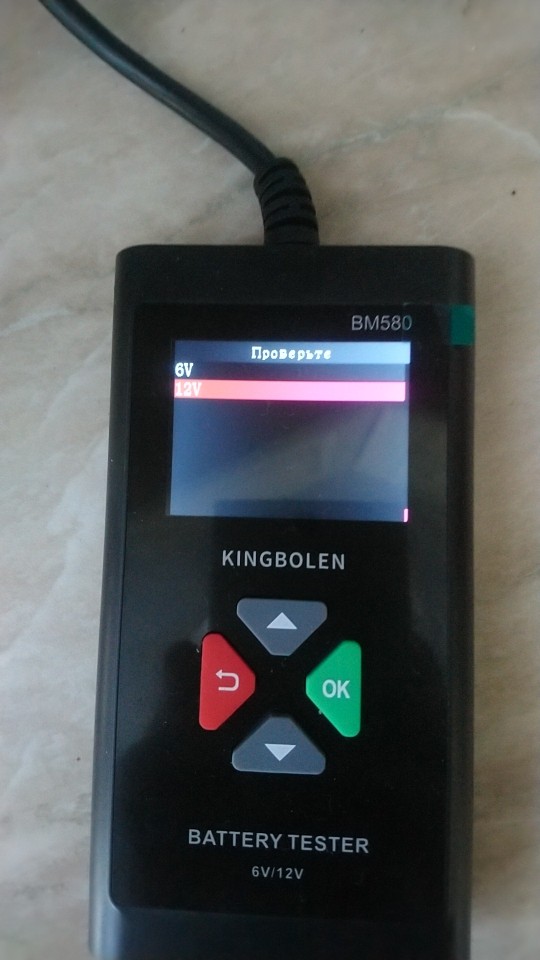

1. Support test wide range of 6V/12V batteries.
2. Simple and easy to operate.

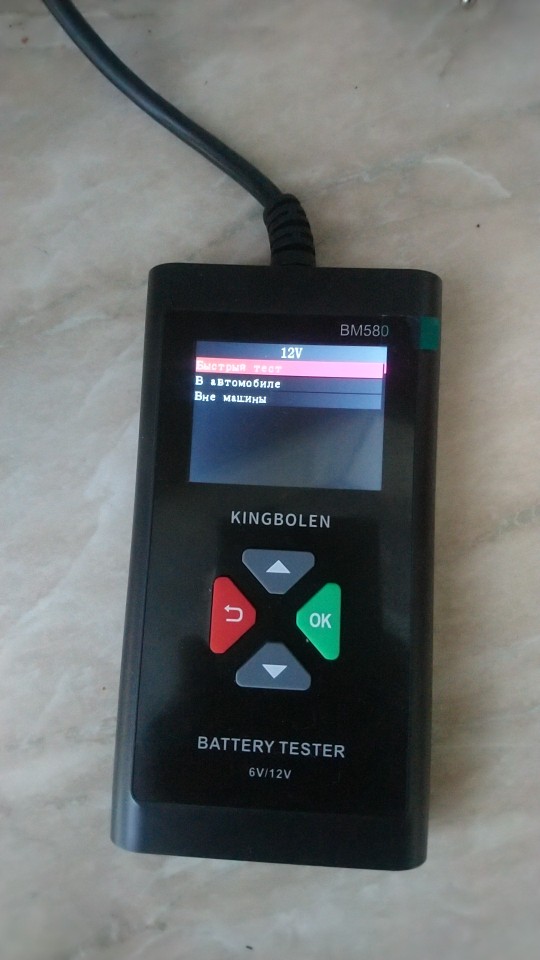

3. Test batteries IN/ OUT of the vehicle.
4. Accurate results in milliseconds.
5. Battery life analysis, health percentage.
6. Analysis Result: Good, Recharge or Replace.
7. Lifetime free update and upgrade.
Quadruple Protection
1.【Overvolatge Input Protection】Below 20V, it can be tested at will without damage the bad internal circuit board has a short circuit.
2.【Reversible Access】The positive and negative poles are connected incorrectly, and the device can be normal start, the device and battery are not damaged.
3.【Poor Contact Prompt】When the test clip does not clamp the positive and negative electrodes of the batter, the display will prompt.
4.【Built-in Buzzer to Remind】During the test, when the battery is in poor condition, the device will give an audible reminder.
Four functions can be switched at will to help you quickly detect the battery status of your car.
1.【Battery Test】 Life / Voltage / CCA / Internal resistance
2.【Start The Test/Cranking Test】Battery discharge performance
3.【Load Test】 Engine performance
4.【Charging Test】 Engine charging system
Regardless Of Positive and Negative,even if the positive and negative polarity is wrong, the device can start normally.
Voltage Waveform Monitoring
Monitor the battery status in real time, understand the current floating size of the battery voltage, and have automatic storage and playback functions.
Support Multiple Battery Types
It supports a variety of battery standards around the world, can test almost all car start-up lead-acid batteries, and has a wide range of applications.
1.EPS lead-acid battery;
2.Car start battery;
3.AGM / EFB start-stop battery;
4.Electric vehicle battery ;
5.UPS lead-acid battery ;
6.Gel battery
Note: UPS battery/electric vehicle battery/motorcycle battery can only measure internal resistance/power/voltage, not battery life.
Low Frequency Constant Current Test
Give the battery a fixed frequency and current test signal, sample, rectify, and filter its voltage, and then calculate the internal resistance of the battery.
Ten Major Test Standards:GB (2AH – 220AH )
Geometry supports all current common battery standards, and a wide range of tests can meet your various needs.
1.CCA: Cold Cranking Amps (100 – 2000 )
2.BCI: Battery Council International (100 – 2000 )
3.CA: Cranking Amps (100 – 2000 )
4.MCA: Marine Cranking Amps (100 – 2000 )
5.JIS: Japan Industrial Standard (26A17 – 245H52 )
6.DIN: Germany Auto Industry Committee (100 – 1400 )
7.IEC: Internal Electrical Technical Commission (100 – 1400 )
8.EN: European Automoblie Industry Association (100 – 2000 )
9.SAE: Society of Automotive Engineers (100 – 2000 )
10.GB:China Naional Standard (2AH – 220AH ) Important breakthrough
Ripple Test
Test the charging system of the engine, the smaller the waveform fluctuation, the more stable the voltage, indicating that the battery is in good condition.
Note: If the test result is normal, the battery is charged normally. If the voltage reading is greater than 15.0V , please check the voltage regulator; if the voltage reading is less than 13.3V, Please check the connection points, wires and engine.
Screenshot Function
It has a one-click screen capture function with long press “Up” and ” Down” button., which is used to capture and save important data, fast and convenient.
( Note: The device can store up to 10 pictures )
Mini USB Interface- Free Update Lifetime
It is used for software upgrade, no need to install driver, the process is simple and easy to operate.
High Quality Design
1.【Non-slip Design】Conducive to one-handed operation.
2.【Integrated Line Machine Design】The interface is stable to prevent falling off and loss, and the wire is strong and not easy to break.
3.【Physical Button】 Fast response and Excellent finger feeling.
4.【Alligator Clip】Pure copper, large opening range, strong bite force.
Pure Copper Alligator Clip
Large opening range, strong bite force, more precise in the measurement process
Specifications:
Model: BM580
Name: Car Battery Tester
Material: PVC,ABS,Copper
Type: Digital
Application: 6V-12V batteries
Test Range: 6V / 12V (100-2000CCA)
Operate Voltage: 5-20V
Operate Temperature: -20 – 65℃
Display: 2.4 “LCD
Housing material: ABS plastic
Test Multiple Battery Types: regular flooded, AGM flat plate, AGM spiral, EFB and GEL,(Cannot test lithium batteries.)
Battery Health Test, Cranking Test, Charging Test, Loading Test
Test Standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE,GB

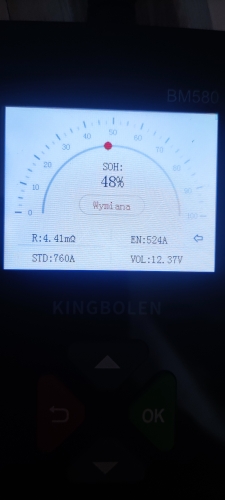

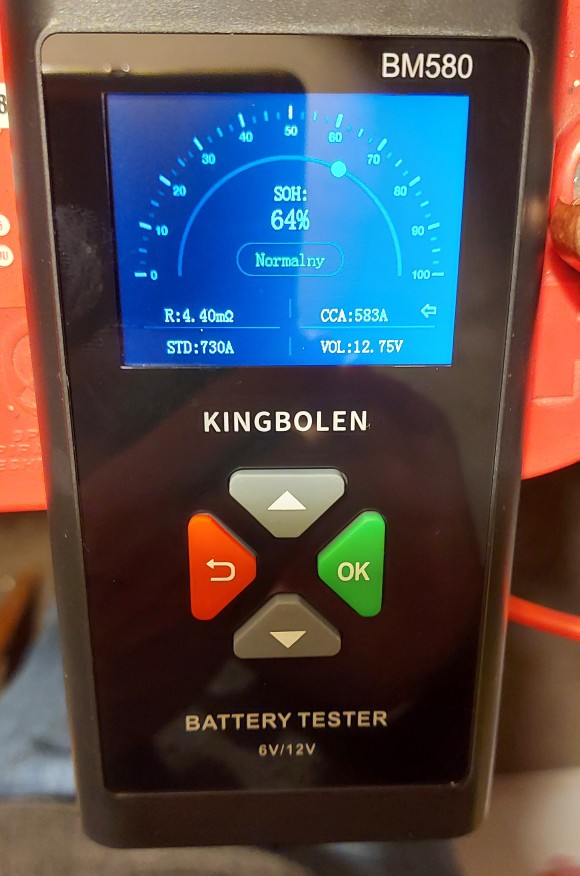

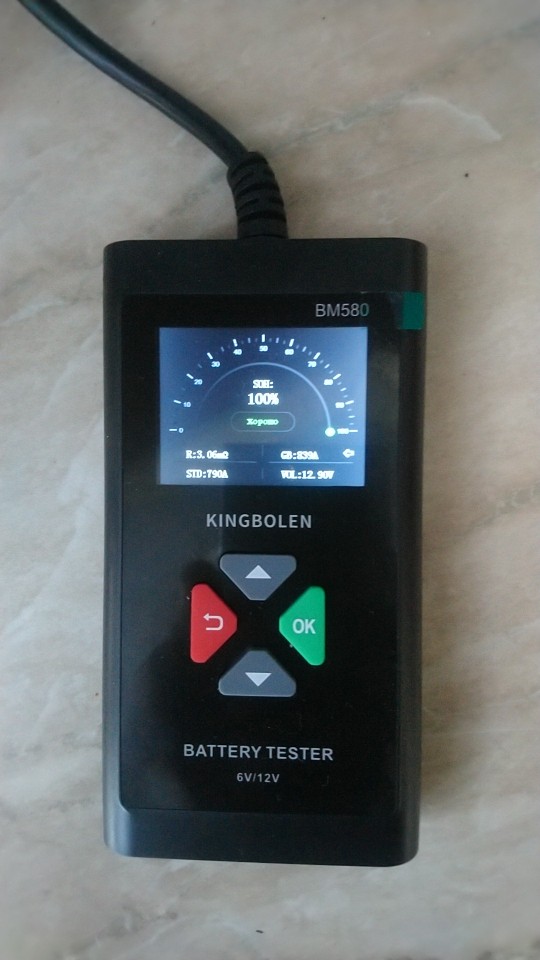

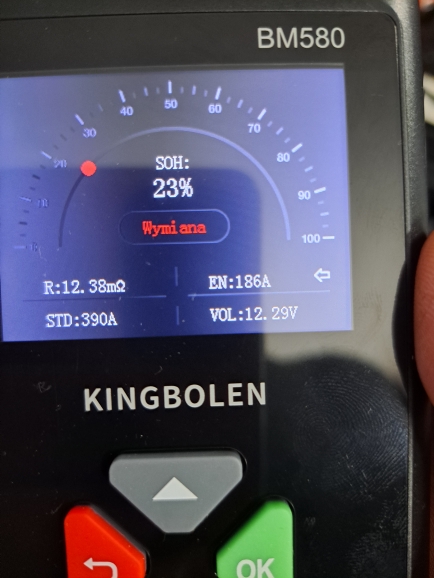

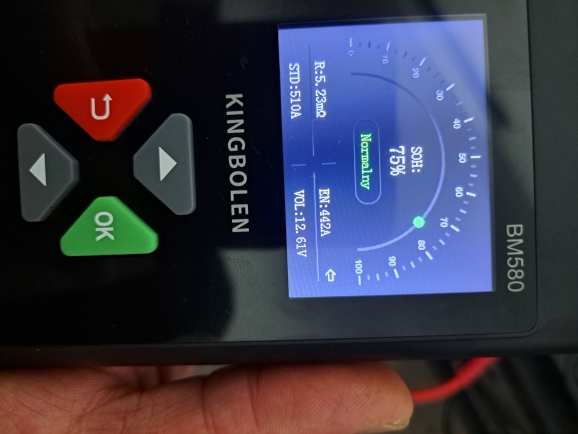

Test Data: SOH, SOC, CCA value, CCA rating, voltage, multimeter etc. Get the test result in within a minute

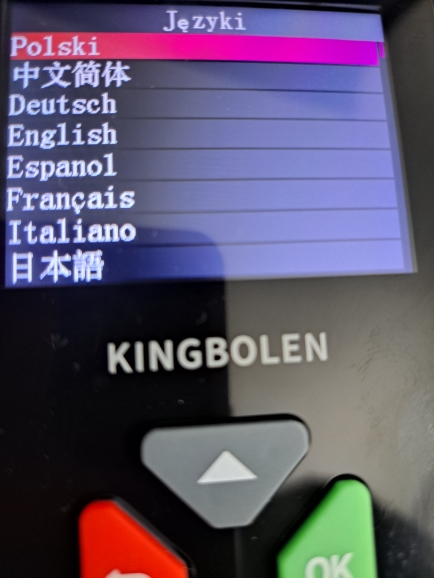

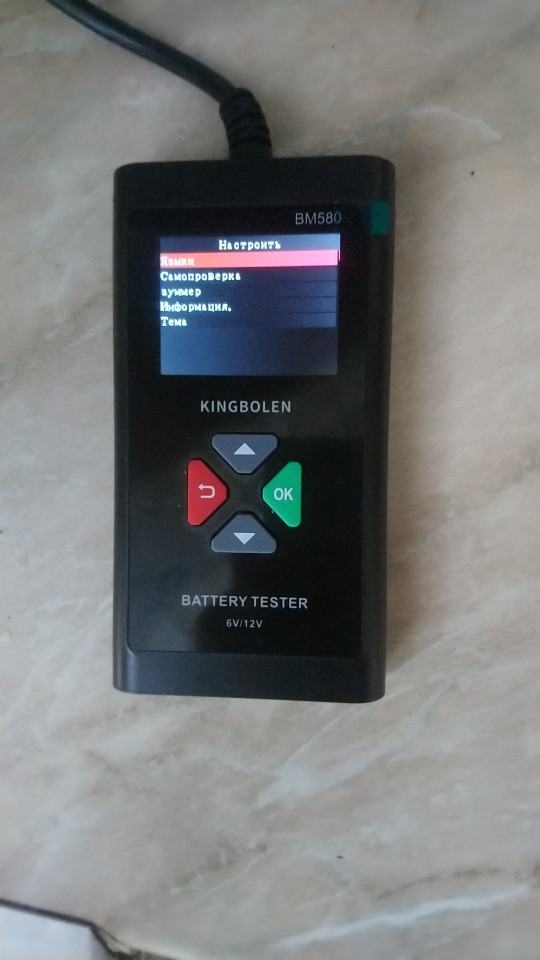

Support 11 languages: English, Spanish, French, German, Italian, Polish, Portuguese, Russian, Japanese, Chinese, Traditional Chinese.

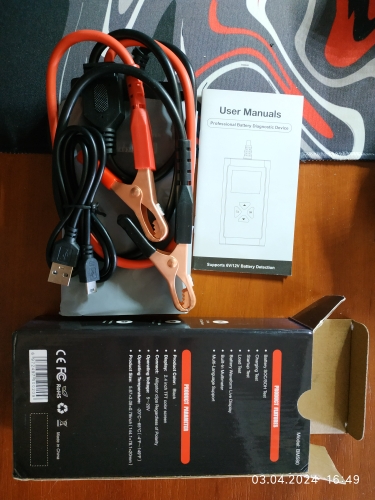

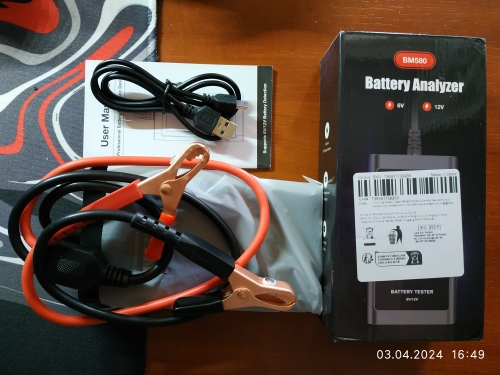

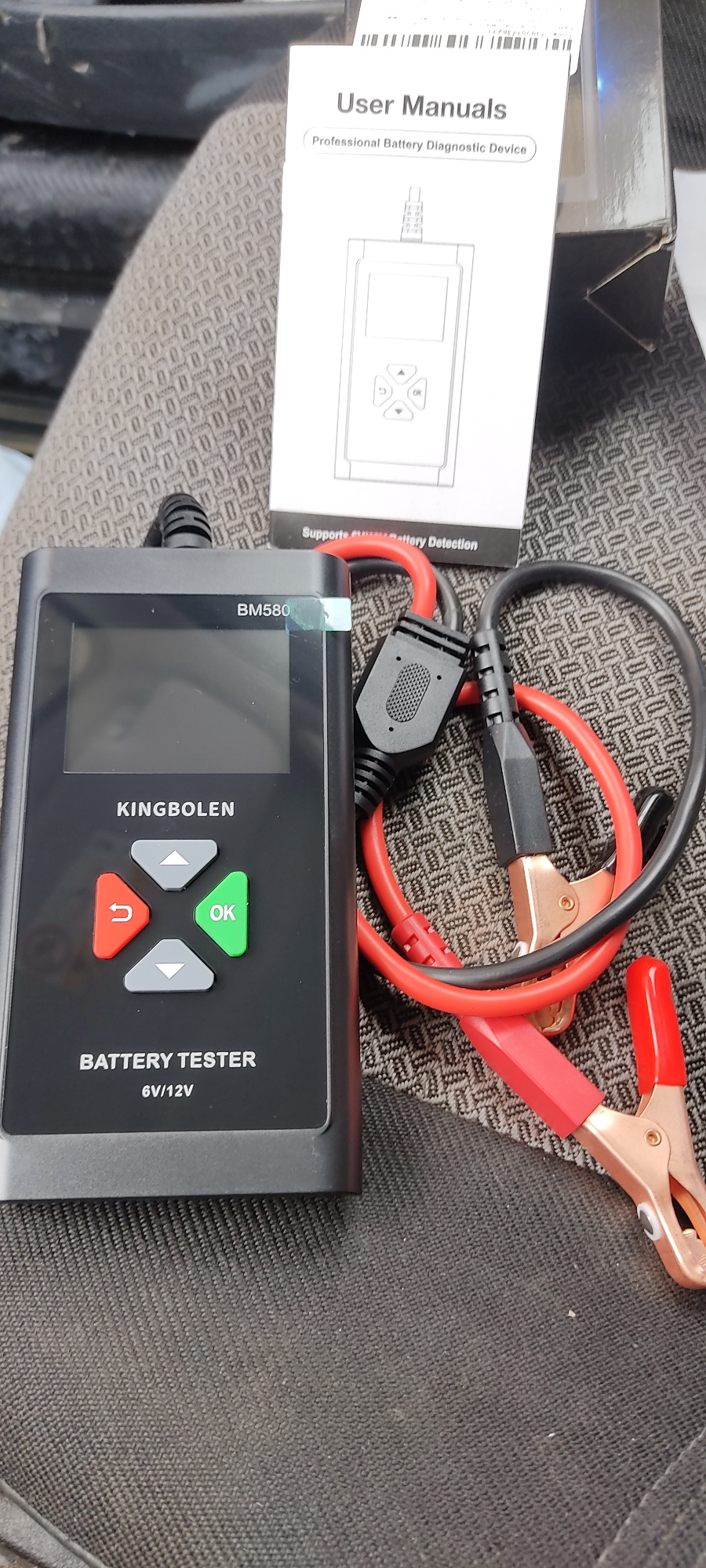

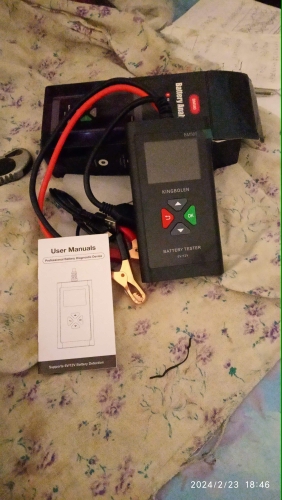

Package Included:
1 x Car Battery Tester
1 x Update Cable
1 x Manual
We are proud to offer international shipping services that currently operate in over 200 countries and islands worldwide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectations anywhere in the world.
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive in your country.
Location | *Estimated Shipping Time |
---|---|
United States | 7-12 Business days |
Canada, Europe | 7-12 Business days |
Australia, New Zealand | 7-12 Business days |
Central & South America | 15-30 Business days |
Asia | 10-20 Business days |
Africa | 15-45 Business days |
Yes, you will receive an email once your order ships that contain your tracking information. If you haven’t received tracking info within 5 days, please contact us.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.
For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.
If you have any other questions, please contact us and we will do our best to help you out.
5 Stars (19) |
95%
|
4 Stars (1) |
5%
|
3 Stars (0) |
0%
|
2 Stars (0) |
0%
|
1 Star (0) |
0%
|
There was a parcel of Shvidenko, for the packaging of the Ministry of Health, the camp of Yak with Vitrini, for the Vagu it is light, for the Vagu, for the Vagu it is light, for the garny will be added to the font, according to the same for the exact attainment of the rest, I can't have a specific Rospovichi, demand zvyriati, it's not nice to live, live for the rahotnik with ACUM glue, May I do not chase VIB parameteris of testuvannya batteries vid 6V to 12V, that great VIB A/H show.
Excellent and simple meter, and additionally available menu in many languages and Polish also. As if he still had a measurement for 24V batteries would be SUPER.
Goods as described, the shipment arrived at the declared time
Item arrived as described did not tested yet but great product
Thank you for the good product. Seller rocomendu
Good equipment, the work of the description makes it perfect
All good. The device is just like it, the new product. Battery 6 in 6A 12 v 60A. all parameters
It is the model shown in the YT videos with a large range of functions. The copy sent to me has the firmware version 1.7 from 12/06 or 06/12/2023-depending on whether it is the normal or American spelling.
Very fast delivery, i did not hope that the parcel will come in this fast. The product seems good quality. I am satisfied with my purchase. I recommend the seller. Thank you very much. 5 stars for you.
Everything is just fine! The device works, believes, shows. I'm not the first one, this one as a gift. The price is to have at least some control of the battery, generator and starting current. How much exactly is another question, but at least some primary information he gives.
Goods match the description, delivery in 16 days. I recommend.
I don't know how much it shows but I think it works
The order came quickly enough, looks good outwardly, the wires are soft, I did not check the accuracy of the values, there is no particular sense, I was primarily interested in the work of the tester itself, I checked its capabilities in the work, while there are no complaints.
Brought quickly. What shows. There are three testers of different manufacturers, all show different data
Fast Shipping To The US...Nice Quality... Looking Forward To Test...But Manual Print Is Too Small To Read...

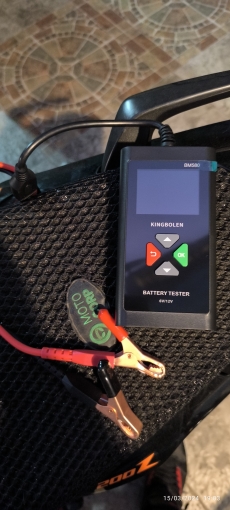

OK. Good operation and good price. Very practical to check the car or motorcycle battery.
Priyshov tester for 13 days in Ukraine m. Odesa, just a super shvidko, a bold seller. Overturning the pratsyu.
The article came in the stipulated time, well packed and excellent conditions. Was tested and compared to a professional analyzer I have and the test results are very accurate. I was really impressed how such an inexpensive and portable analyzer can have a data resolution as exact as a professional team of a recognized brand. I recommend it widely.

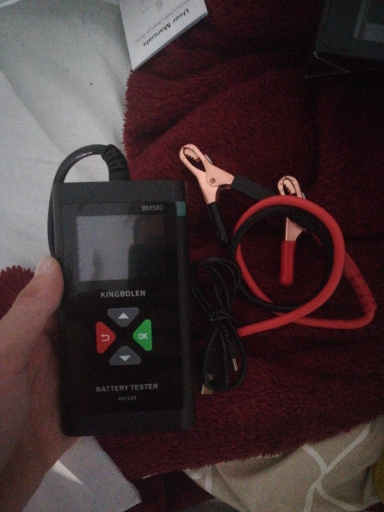

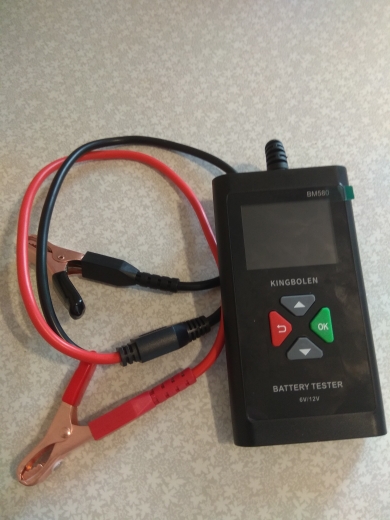

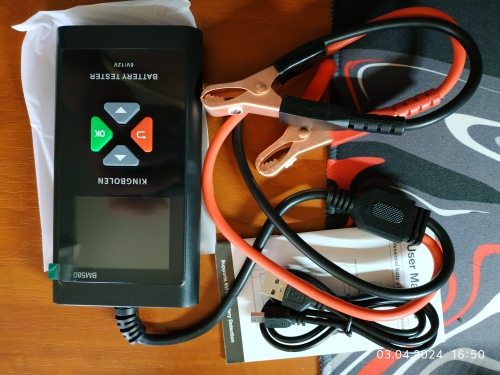

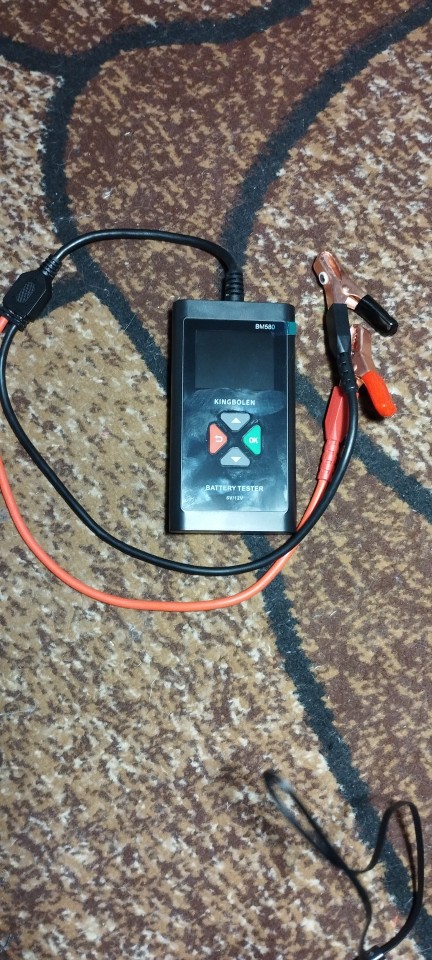

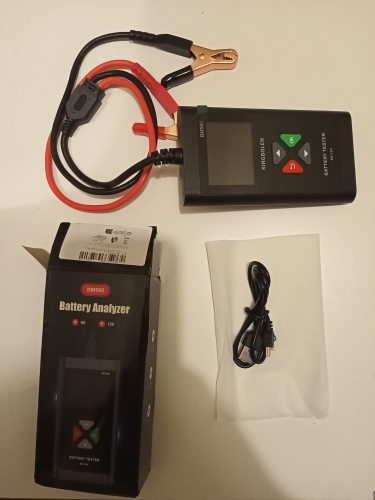

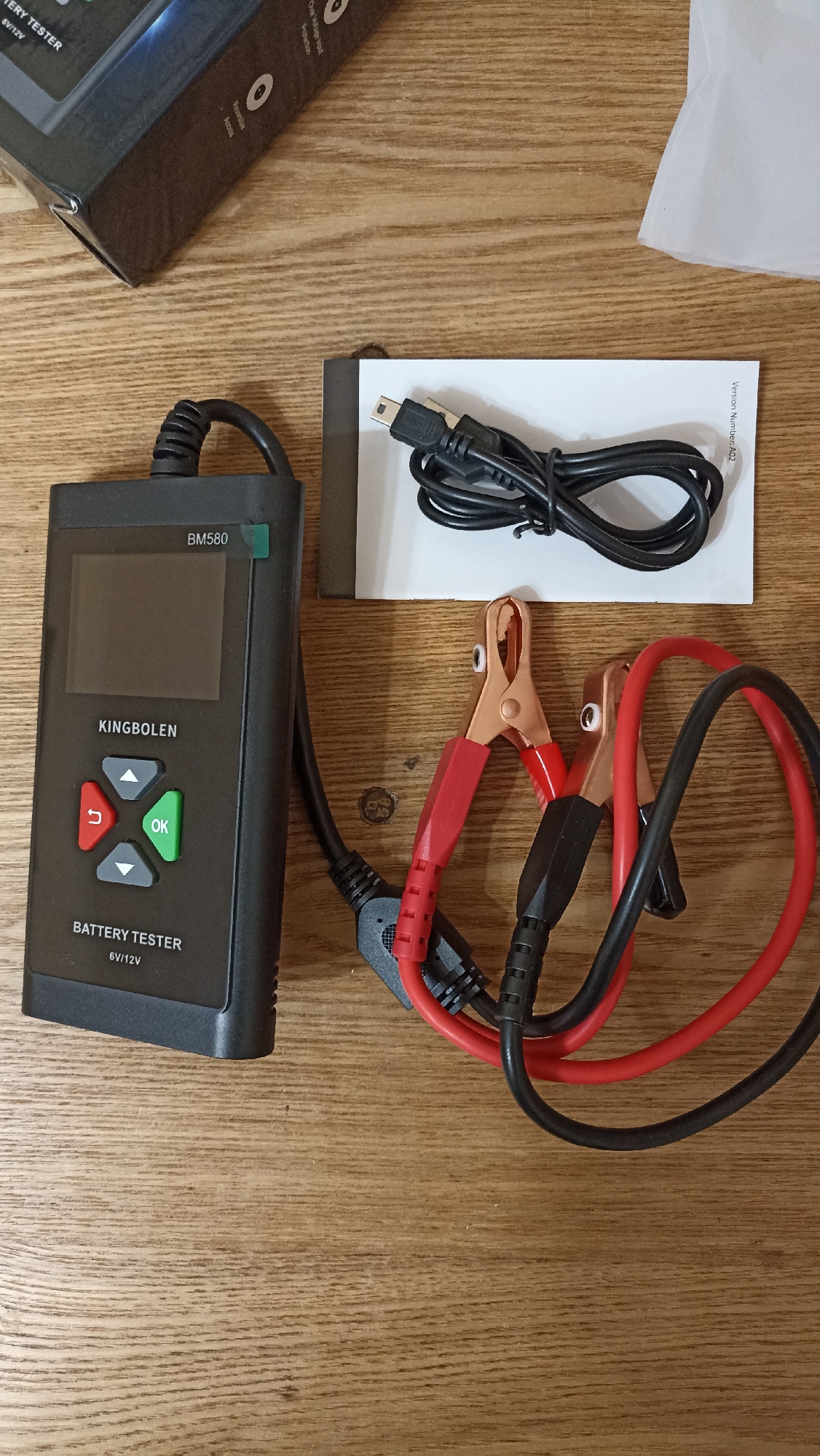

Delivered in 10 days. The device is assembled quite well. Thick flexible wires. Crocodiles are elastic, copper color, magnetic. The last firmware, for 06/23. The voltage readings coincide with the tester within the last sign. I can't say about the current, but the numbers are similar to another device. Included mini USB wire, in the form of a trapezoid.

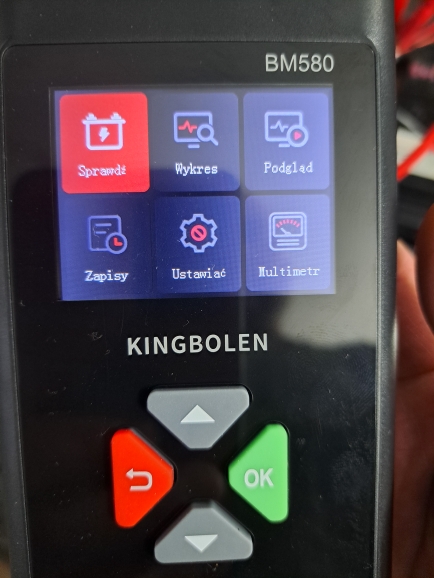

He has a Polish language, for which I already like him. Tests the different functions of Aku and its condition. At YT, you can find a video about him and watch what he can do. He joined my garage group. A valuable acquisition. I recommend the seller's shop and merchandise.
