Scanner Professional YA200 OBD2 Diagnostic Tool Car Accessories Auto Engine System DTC Lookup Code Reader

Functions:

• With full OBD2 Functions: Read/Clear DTCs, I/M Readiness Check, Live Data Stream Viewing, Freeze Frame Data Viewing, O2 Sensor Test, On-board Monitor System Test, EVAP System Test, Vehicle Information Retrieval along with advanced DTC Lookup function.

• 9 kinds of Languages supported: English, French, Russian, German, Italian, Spanish, Portuguese, Polish, Traditional Chinese.

• With accurate aeal-time data flow, supports graphical recording and playback.

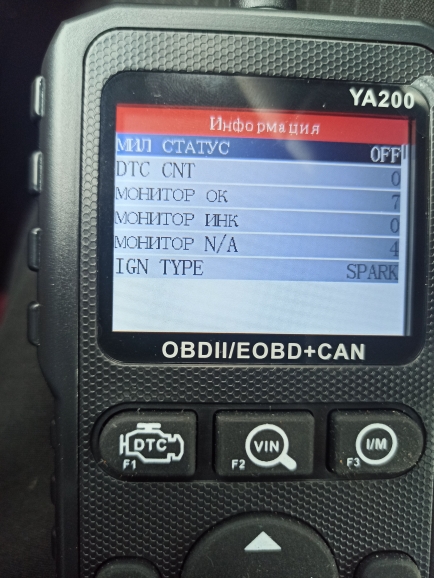

• I/M Readiness: Check that the vehicle’s emissions system is functioning properly

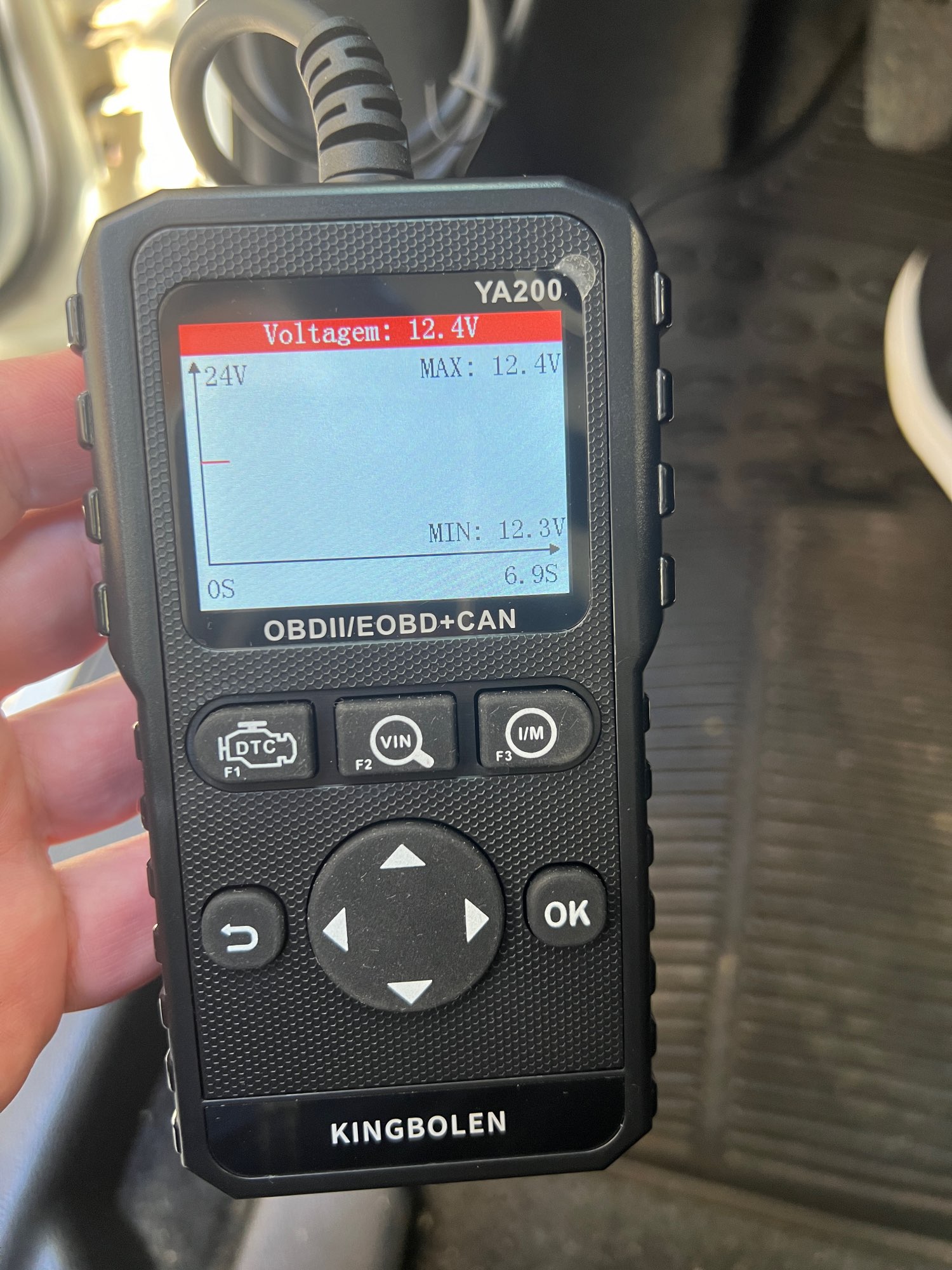

• Support Real-time Voltage Test: It can display the voltage of OBD diagnostic socket and the status after evaluation. It mainly feeds back the current voltage condition of the diagnostic socket or the battery condition. If the voltage of the battery is lower than 12V, it is recommended to go to the professional tester to diagnose the current battery condition.

• One-click design makes diagnosis easier and faster:

  1. One-click I/M Readiness: Just click a button to query I/M Readiness.

  2. One-click DTC：Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC (Not every DTC with possible causes reason)

  3. One-click VIN: Displays the vehicle’s identification number.

• Support Screenshot Functionyou can take screenshots during the use of the YA200 code scanner to record the diagnosis results at any time. Just presstheupanddownkeysfor3s-5stotakeascreenshot, which can store up to 10 pictures.

• Support Lifetime Free Update: Comes with Lifetime Free Update, which can be upgraded simply by connecting to a PC with a USB cable. But please note that the goods we send are all the latest versions. If there is no problem with the settings, it is not recommended to upgrade at will, thank you.

• Support Complete OBD2 Function:

  1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

  2. Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.

  3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

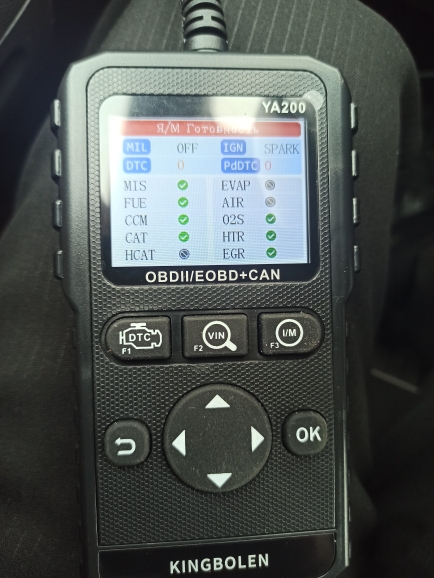

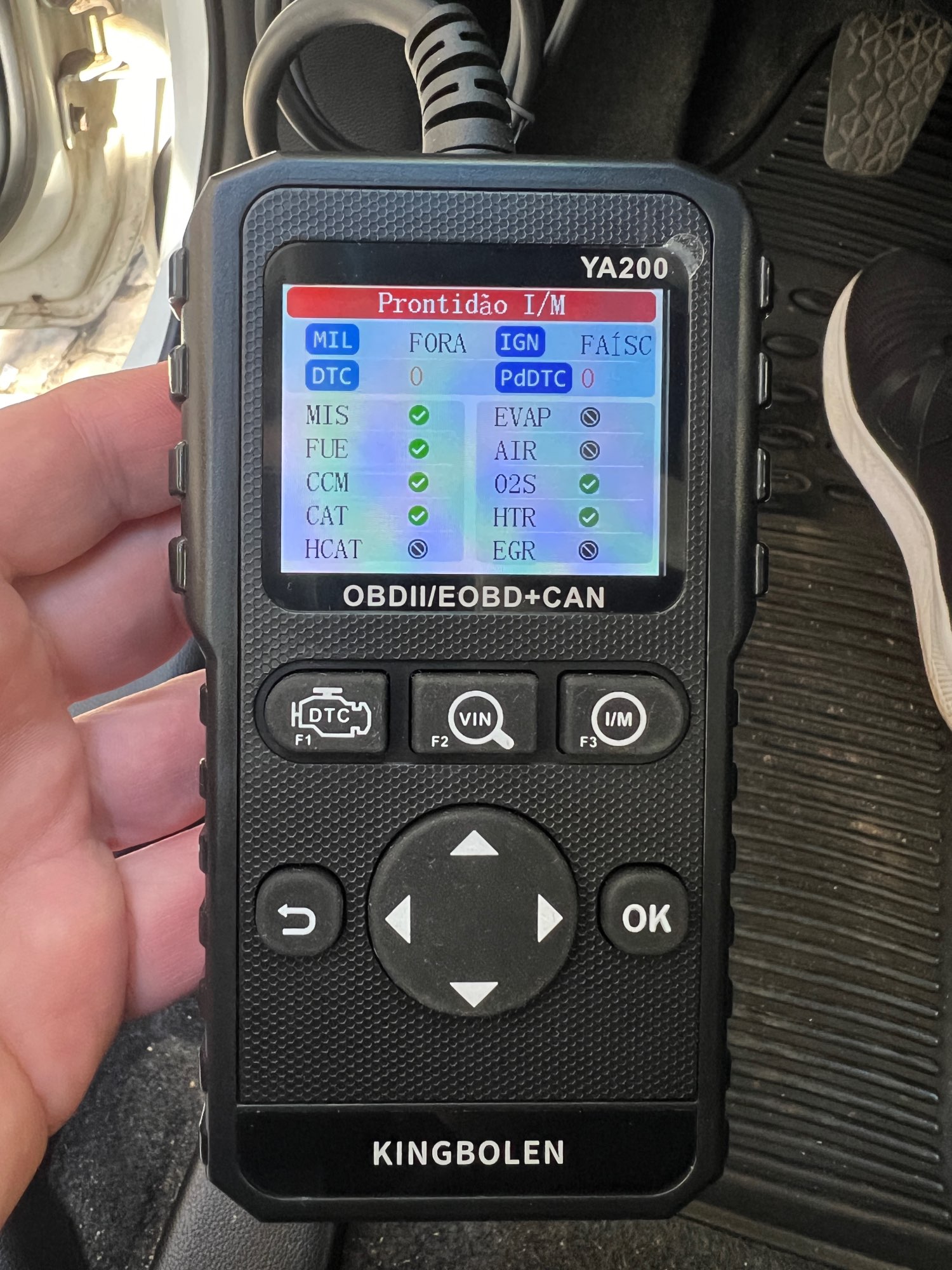

  4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

  5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

  6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

  7. O² Sensor Test: Allows retrieval and viewing of O² sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

  8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

  9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc..

  10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

• Meets the following protocols:

  ${40}
  ${41}
  3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
  4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
  6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
  7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
  8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
  9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

• Support 10,000 + car models:

  1.American (USA) car:Compatible with Standard OBD2 Cars from 2000 to Now:
  For Chrysler, for Ford, for GM, for Jeep…

  2.European car:Compatible with Standard OBD2 Cars from 2003 to Now:
  For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar…

  3. France Car after 2006:for Citroen, for Fiat, for Renault, for Peugeot
  Not Support for Renault Clio 2/Megane/Dacia Logan..

  4. Japanese/Korean Car:Compatible with Standard OBD2 Cars from 2007 to Now:
  For KIA, for Isuzu, for Honda, for Mitsubishi, for Hyundai , for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota…

  5. Chinese car: Compatible with Standard OBD2 Cars from 2009 to Now:
  For BYD, for Chery, for Geely, for Great Wall, for Karry…

• Warning Notice:

  1. Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.
  2. Not Support Russian Cars before 2012, VAZ, UAZ, LADA ; Not works with 24V trucks.
  3. for Renault, SsangYong, please contact us before purchasing.

• After receiving the goods, if there is a problem that the model does not support, please check whether your car belongs to the above model and year. If so, please send us an email, and we will send you the upgrade file and update the device.

Specification:

• Color: Black

• Display: 320×240 pixels display with TFT color screen.

• Operating Temperature: -10°C to 40°C (14°F to 104°F).

• Storage Temperature: -20°C to 70°C (-4°F to 158°F).

• External Power: 9.0V to 16.0V power provided via vehicle battery.

• Product Size: 137x68x22mm.

Notes:

• This code reader is only for 12V 16PIN OBD2/EOBD car.

• DOES NOT support hybrid car, pure electric car, trucks, motorcycle.

• For ENGINE System Check only, other system diagnostics are not supported.

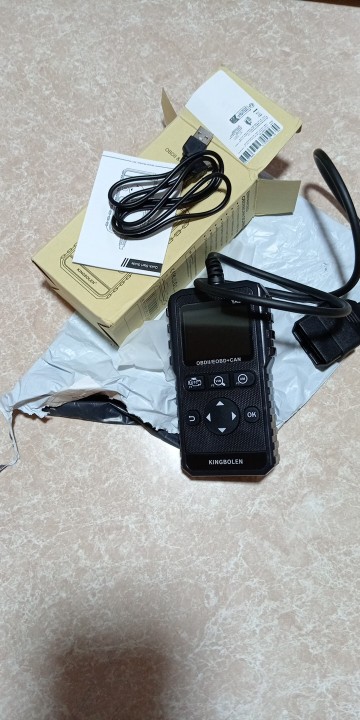

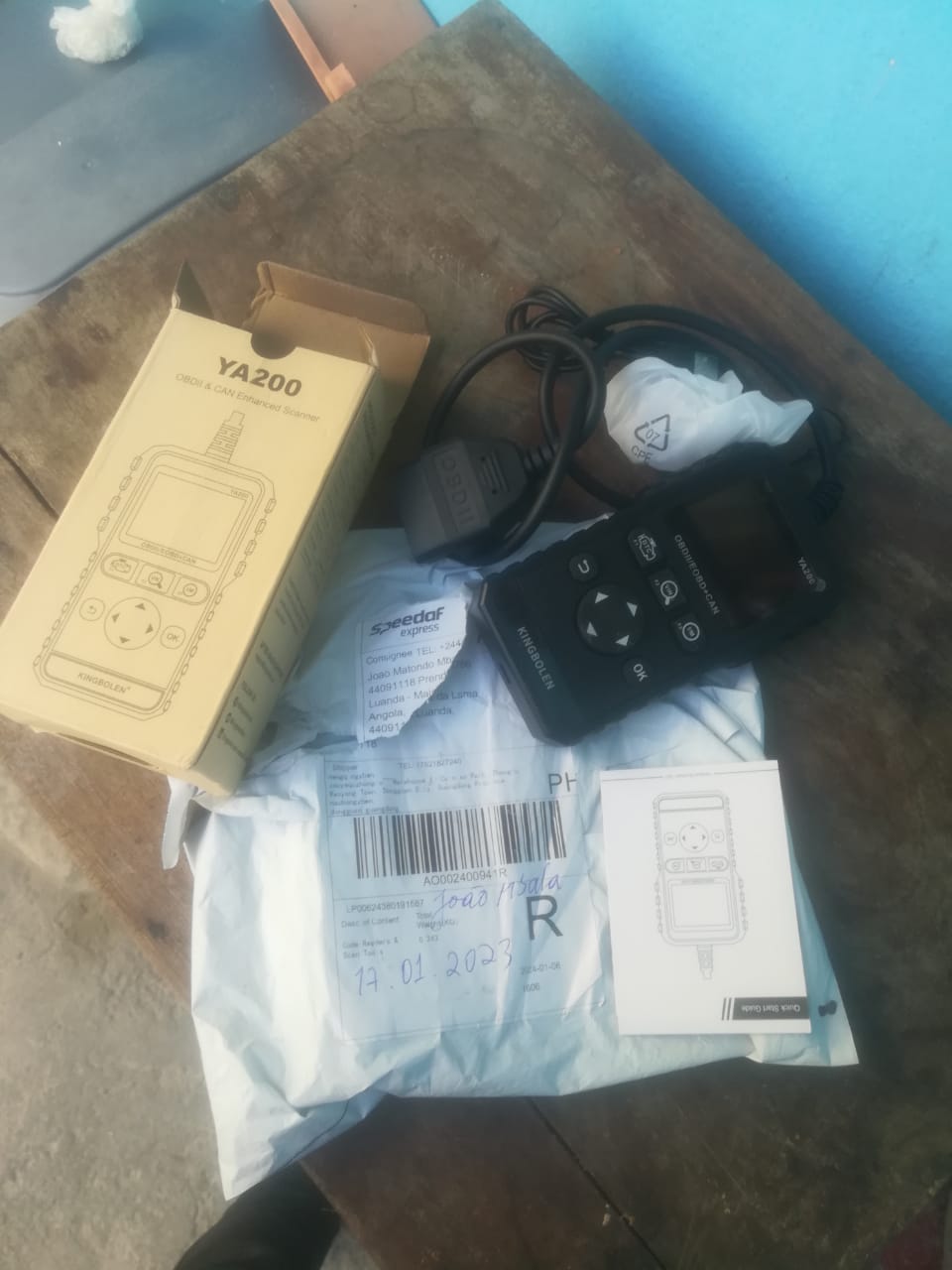

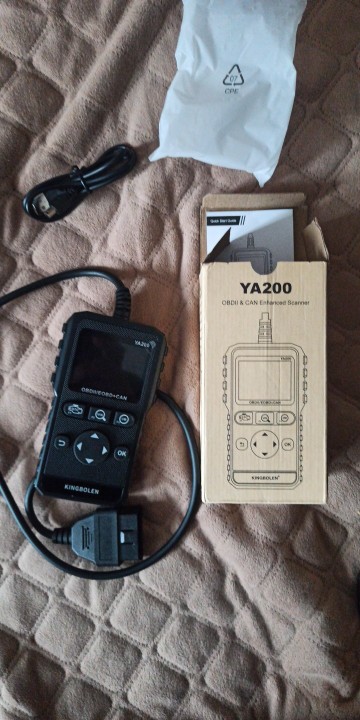

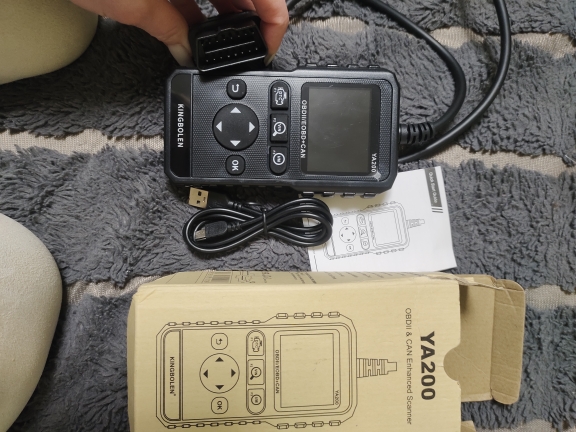

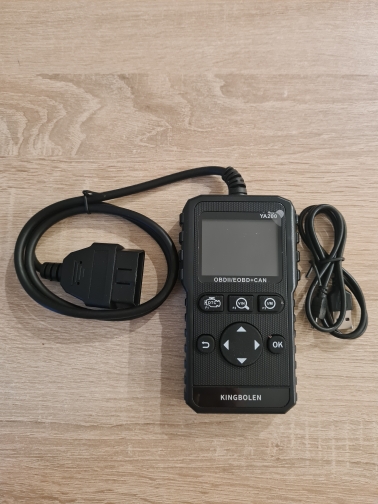

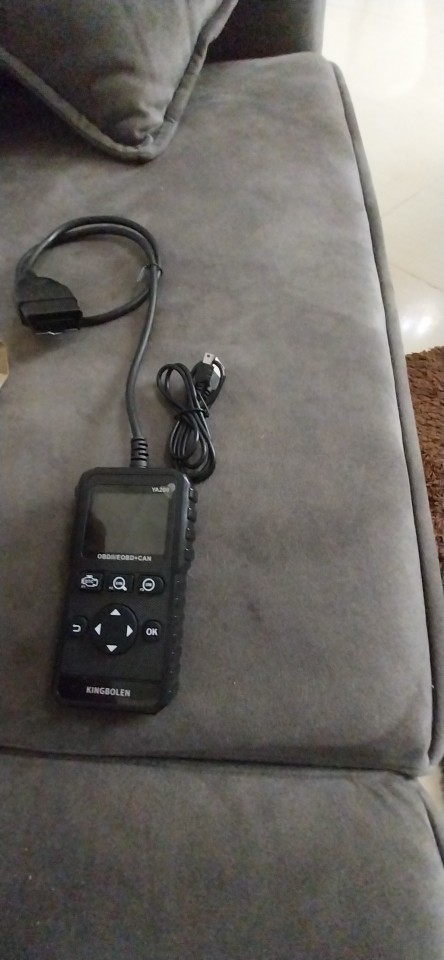

Package Included:

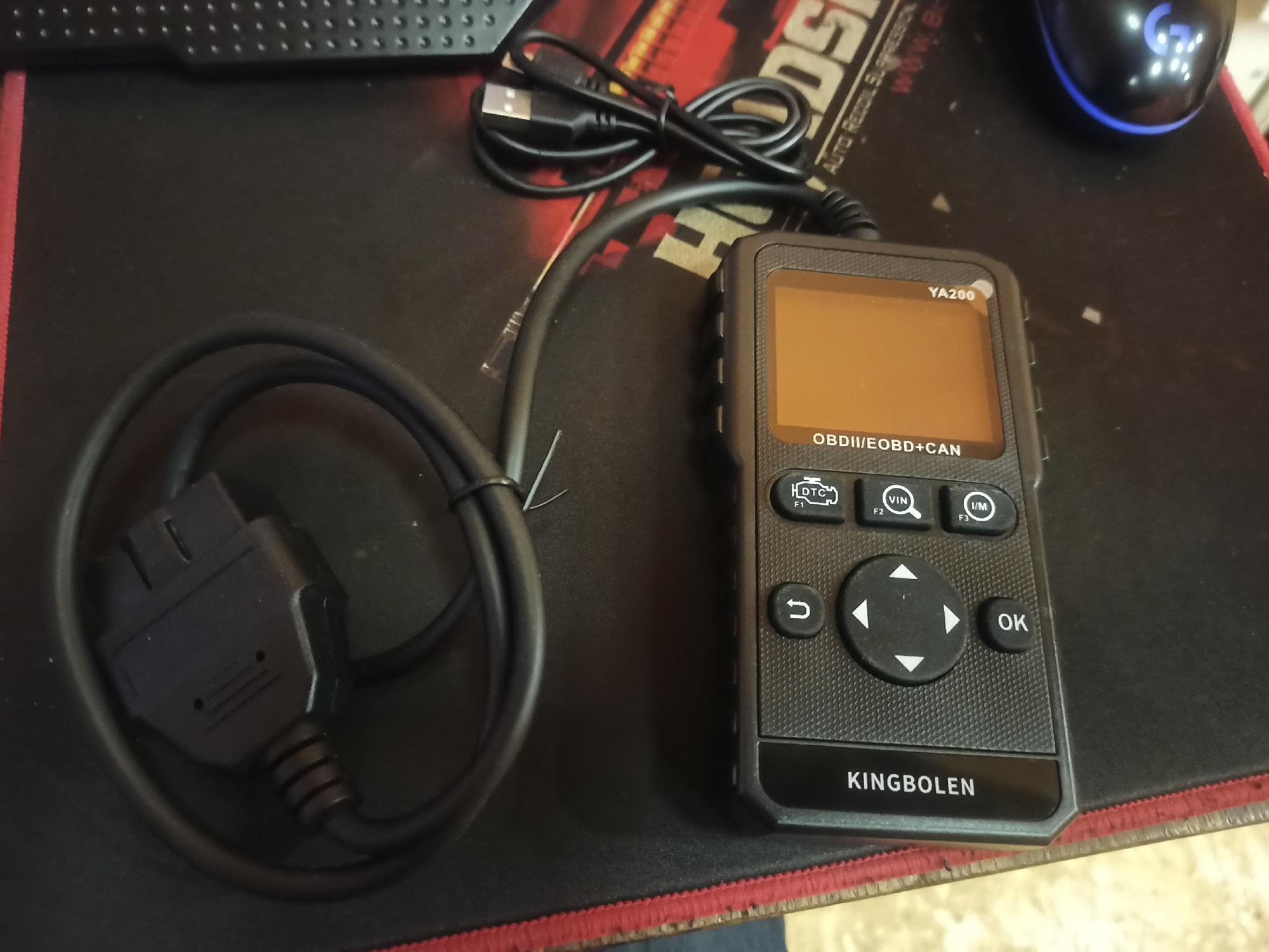

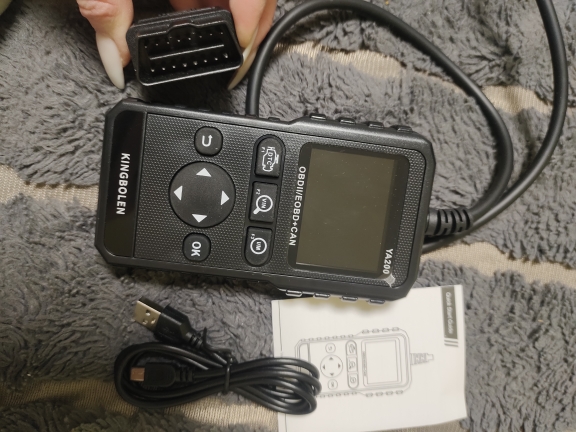

• 1X KINGBOLS YA200 Code Reader

• 1 x USB Cable

• 1 x User Manual

• 1 x carton box
